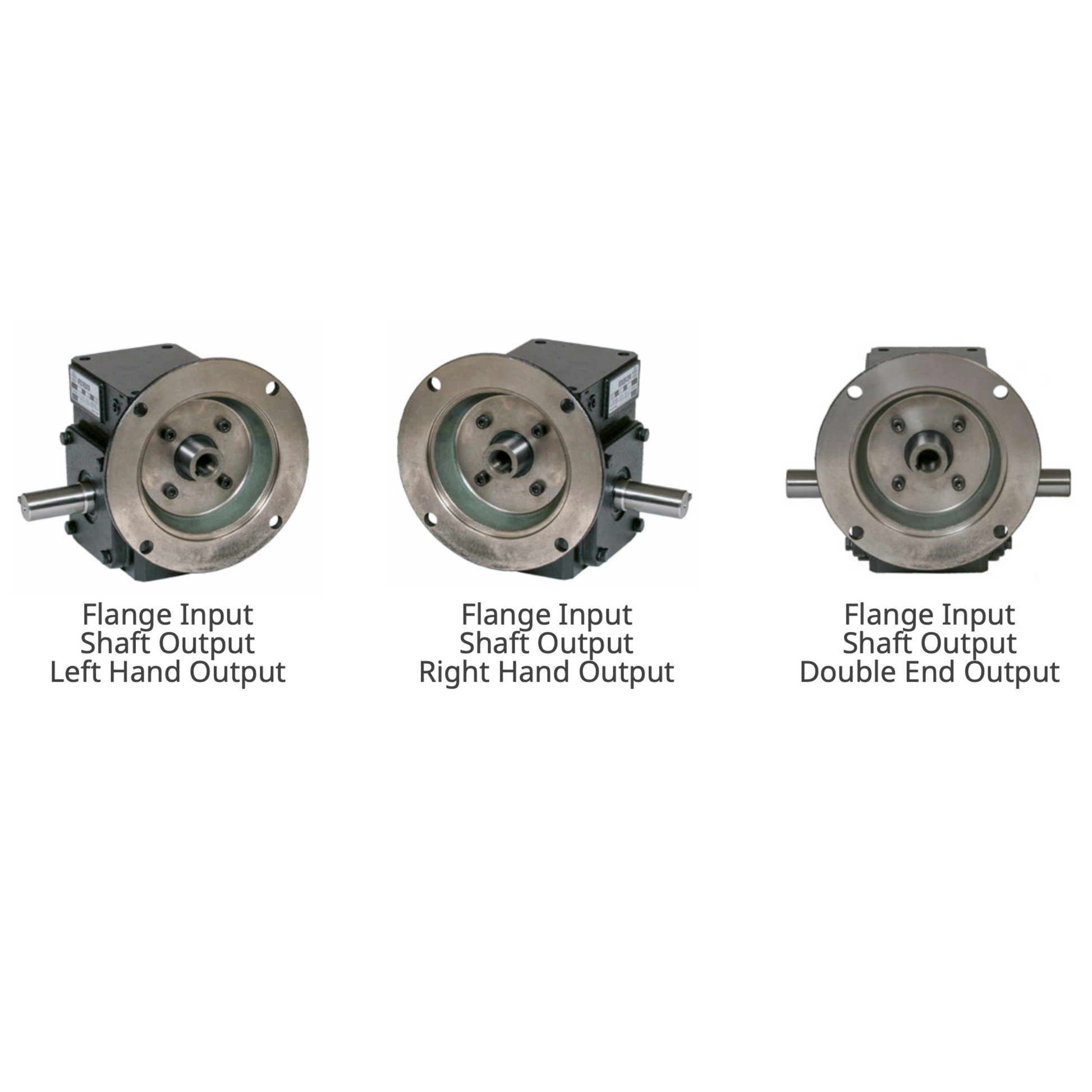

(Please select LH/RH or double end variant) This gearbox offers ratios from 5:1 to 60:1 with center distances ranging from 1.33” to 3.25”. It features a one-piece FC20 cast iron housing, double-lip oil seals, and double bearings on both shaft ends. Tapered roller bearings are used on the input and output shafts, with an internal oil channel for continuous bearing lubrication. The S45C carbon steel shafts are protected by a shaft sleeve, and the AIBC3 aluminum-bronze gear ensures durability. The unit is coated with an anti-rust primer and air-dried black paint, with radiused mounting holes for easy installation. Filled with Mobil #SHC632 synthetic oil for "A" mounting, it is universally interchangeable.
